Project Overview:

Developer: The project plan features the distinct Freedom Property logo with taglines in both Bengali and English, highlighting its focus on sustainable, high-quality development for local and foreign property buyers. A color-coded table (Green for Unit A, Red for Unit B) explicitly defines the exact flat size for each of the two units as 1200 Square Feet.

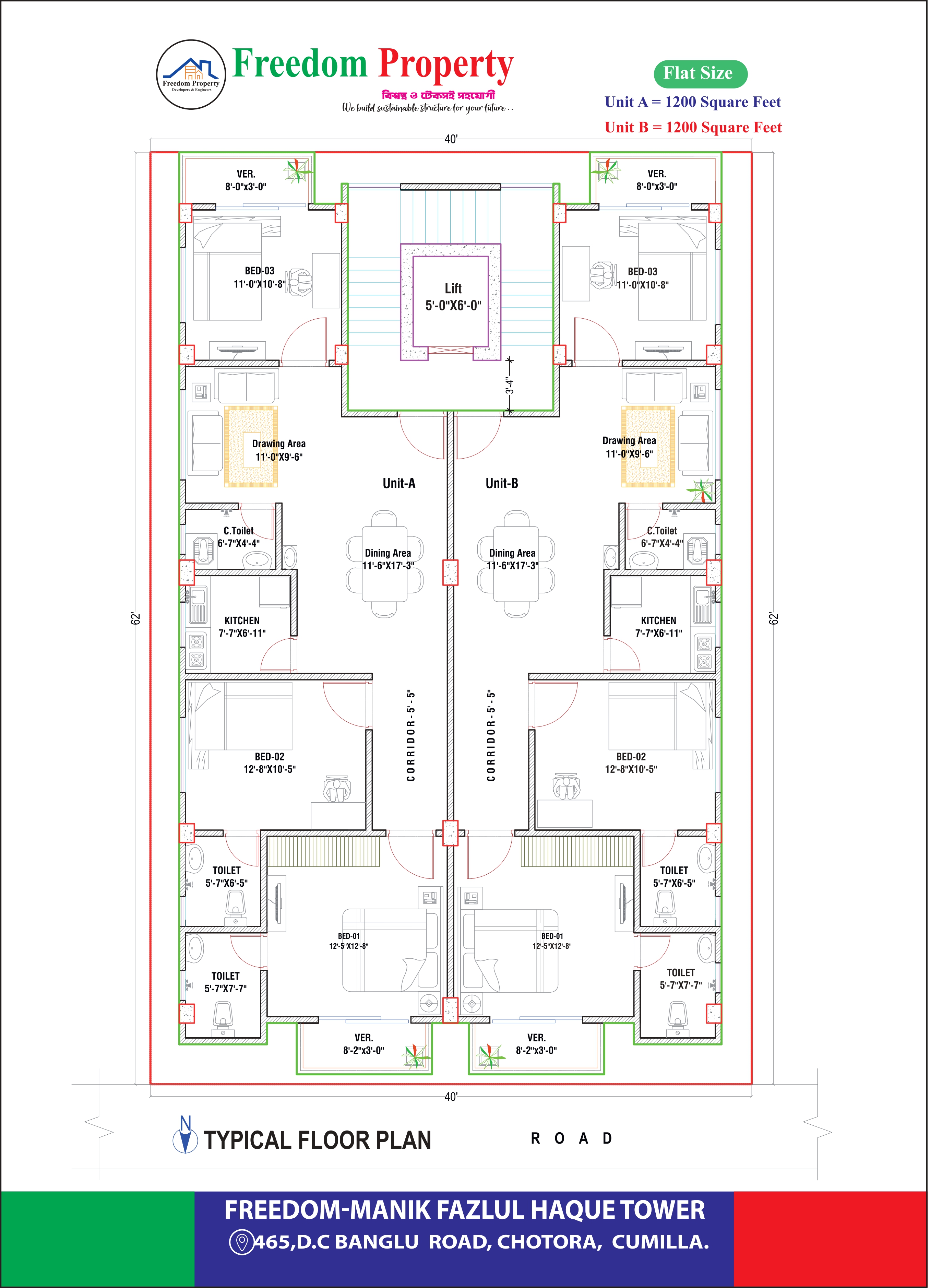

Typical Floor Layout: The plan details a representative floor featuring two fully mirrored apartments, Unit A (left) and Unit B (right), separated by a long, central access corridor. The building plot is approximately 40 feet in width.

Shared Core Facilities: The entire floor is served by a central access core at the southern end (top of plan), featuring a building elevator (lift) (5'-0"x6'-0") and an surrounding stairwell, providing access to all floors and both units.

Detailed Unit Specification (using Unit B as reference, mirrored):

• Unit Entry & Hub: The apartment is entered from the central corridor into a massive, central open-plan Dining Area (11'-6"x17'-3"). This area serves as the home's functional and social hub, connecting directly to most other zones.
• Mid-Unit Facilities: Accessed directly from the Dining Area are a dedicated Kitchen (7'-7"x6'-11") and a Common Toilet (C. Toilet, 6'-7"x4'-4").
• Front-Facing North Private-Public Cluster (towards main ROAD): This zone is oriented towards the main public road, and features:
• Drawing Area: A large formal living space (11'-0"x9'-6").
• Master Bedroom Suite (Bed-01): A spacious North-facing Master Bedroom (12'-5"x12'-0").
• Master Amenities: Dedicated solely to Bed-01 is a full attached Toilet (5'-7"x7'-7") and a spacious North-facing private Verandah (8'-2"x3'-0").
• Rear-Facing South Private-Private Cluster (towards access road/lift): This quieter, more private rear zone contains:
• Bedroom-02: (12'-0"x10'-5") accessed from the corridor.
• Bedroom-03: (11'-0"x10'-8") with its own smaller, South-facing private Verandah (8'-0"x3'-0").
• Additional Toilet: (5'-7"x6'-5") serving Bed-02 and Bed-03.

This detailed plan showcases a highly efficient and luxurious three-bedroom home design, making Freedom-Manik Fazlul Haque Tower a premier residential address in Cumilla.
